特點：Features

超強彈性扭矩可吸收振動、補嘗徑向、角向和軸向偏差。
Ultra flexible torque can absorb vibration, parallel, angular misalignments and shaft end-play.
抗油及電氣絕緣、主體采用陽極表面處理。
Exhibits excellent electrical insulation, The main body uses the anode surface treatment.
有兩種不同硬度彈性體（黃/紅）可供選擇。
Two kind of different degree of hardness elastomer (yellow/red) may supply the choice.
免維護、小扭矩時無回轉間隙.
No maintenance, Zero backlash in low torque application.
順、逆時針回轉特性完全相同。
Identical clockwise and counter-clockwise rotational characteristics
適用于減速機、伺服電機、數控機床。
Is suitable in Speed reducer, Servo motor, CNC Machine.

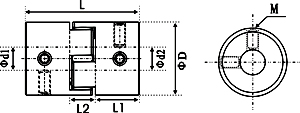

   結構圖：

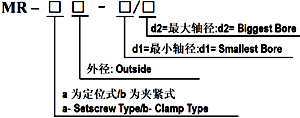

選型指導:Ordering lnformation

例：MR–a40–14/24
            MR:系列號，材料為鋁合金
           a40:a為定位式，40為外徑尺寸40mm
          14：d1軸徑為14mm
           24：d2軸徑為24mm
  n 請參考下圖參數表
Example: MR–a40–14/24
        MR: Series NO, Material: Aluminum Alloy
       a40:a-Setscrew Type, Outside dimension 40mm
       14:d1 Bore: 14mm
       24: d2 Bore: 24mm
