特點：Features     高扭矩剛性和靈敏性、零回轉間隙。 High torque stiffness and response, zero backlash. 采用不銹鋼波紋管，可耐高溫、免維護。 Stainless steel plate bellows,but thermostable,no maintenance. 波紋管具有超強糾偏性。 Bellows has ultra strong corrects an error ability. 順、逆時針回轉特性完全相同。 Identical clockwise and counter-clockwise rotational characteristics. 適用于編碼器、測量機。 Is suitable in encoder, Measuring Machine.

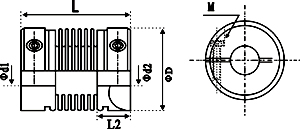

結構圖：

選型指導:Ordering lnformation

例:ME–b25–08/12            ME：系列號，材料為鋁合金           b25:b為夾緊型，25為外徑尺寸25mm           08：d1軸徑為08mm           12：d2軸徑為25mm          n  請參考下圖參數表 Example:ME–b25–08/12                  ME: Series NO, Material: Aluminum Alloy       ;          b25:b- Clamp Type, Outside dimension 25mm                  08:d1 Bore: 08mm                  12: d2 Bore: 12mm



                      ME型夾緊小扭力波紋管聯軸器尺寸表
       ME- Clamp Small Torsion Bellows Type Flexible Coupling Dimensions

備注：內孔在d2范圍內均可做。
