特點：Features     一體成型的金屬彈性聯軸器。 One-piece metallic spring coupling. 適用較小力矩的軸聯接，零回轉間隙。 Suitable in small moment of force axis joint, Zero backlash. 彈性作用補償徑向、角向和軸向偏差。 Absorption of parallel, angular and shaft end-play misalignments. 順、逆時針回轉特性完全相同。 Identical clockwise and counter-clockwise rotational characteristics. 定位螺絲或夾緊螺絲。 Setscrew type or clamp type. 適用于步進電機、編碼器。 Is suitable in Stepping Motor, enclder.

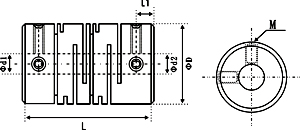

結構圖：

選型指導:Ordering lnformation

例：MF–a32–10/14           MF：系列號，材料為鋁合金           a32:a為定位型，32為外徑尺寸32mm          10：d1軸徑為10mm          14：d2軸徑為14mm          n 請參考下圖參數表 Example:MF–a32–10/14                   MF: Series NO, Material: Aluminum Alloy                 a32:a- Setscrew Type, Outside dimension 32mm                  10:d1 Bore: 10mm                 14: d2 Bore: 14mm



                                             MF型定位平行式聯軸器尺寸表
                        MF- Setscrew Parallel Slit Type Flexible Coupling Dimensions

備注：內孔在d2范圍內均可做。
