特點：Features   利用脹套聯接的膜片型聯軸器。 Using locking assemblies connect plate springs coupling. 零回轉間隙，拆裝方便。 Zero backlash , disassembles conveniently. 高靈敏度，傳遞力矩大。 Excellent response and high torque capacity. 順/逆時針回轉特性完全相同。 Identical clockwise and counter-clockwise rotational characteristics. 不銹鋼膜片補償徑向,角向和軸向偏差。 Stainless steel plate springs absorb parallel, angular and shaft end-play misalignments. 適用于伺服電機，減速電機，步進電機等聯接。 Is suitable in servo motor, Speed Reducer ,Stepping Motor.

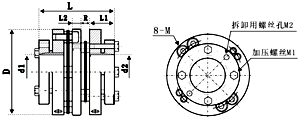

結構圖：

選型指導:Ordering lnformation

例：ZMJ-94-28/48JT           ZMJ：系列號，材料為45#鋼           94: 94為外徑尺寸94mm          28：d1軸徑為28mm          48：d2軸徑為48mm          n 請參考下圖參數表 Example:ZMJ-94-28/48JT          MMJ: Material:45# Steel         94:Outside dimension 94mm         28:d1 Bore: 28mm         48: d2 Bore: 48mm

                              ZMJ型多節脹套膜片聯軸器尺寸表
     ZMJ-Multisection Steel Locking Assemblies Type Flexible Coupling Dimensions

備注：內孔在d2范圍內均可做。
